Titan DIY Kits

DIY Kitchen Galley Kit for Transit Vans

DIY Kitchen Galley Kit for Transit Vans

Regular price $1,595.00 USD
Regular price Sale price $1,595.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

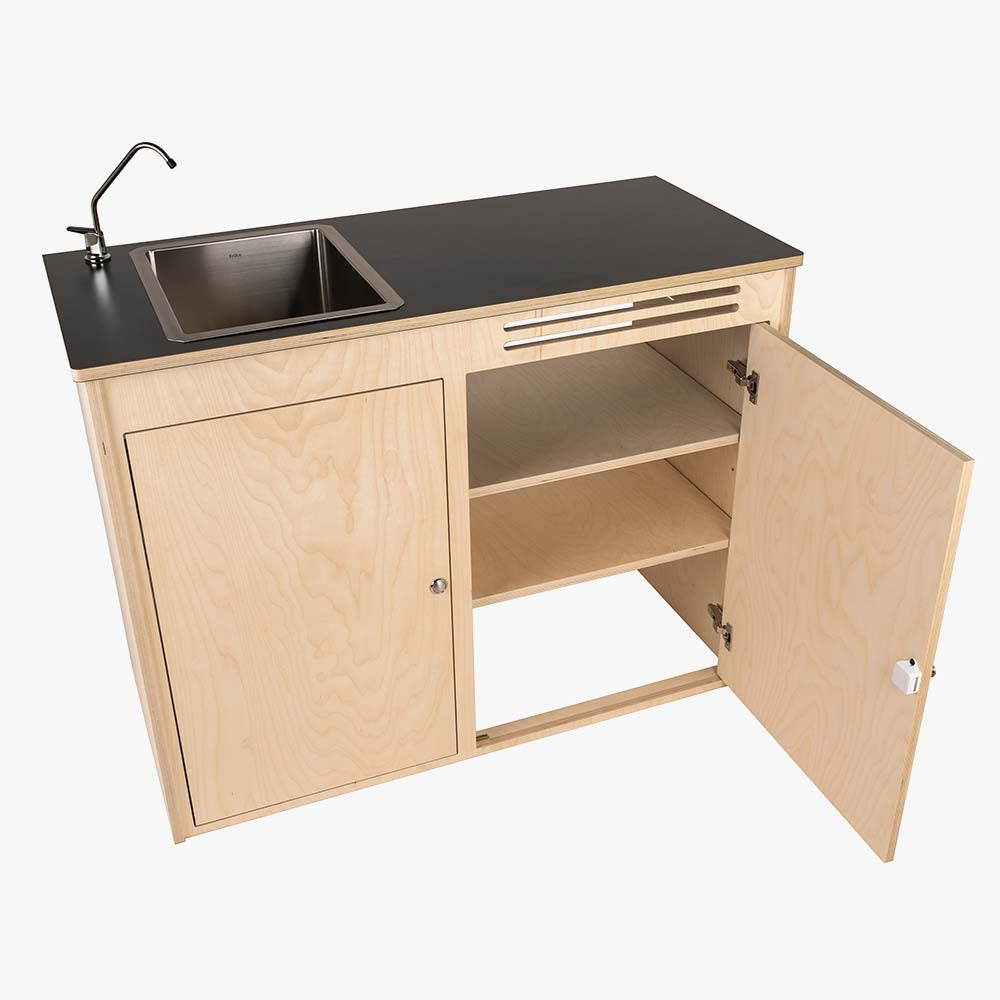

The DIY Van Galley/Kitchen Kit is high quality, cost-effective, and easy to build. It was designed to specifically fit high-roof Ford Transit vans. We CNC cut all of the materials and source the highest quality components to make sure everything works well while you’re out adventuring. The kit is ready to paint, stain or finish however you like. Can have a fridge by removing the shelves and large door.

Please Read

ALL OUR WOOD PRODUCTS COME AS UNFINISHED NATURAL WOOD. WARPING DUE TO MOISTURE AND HEAT IS COMMON! IF CHOOSING TO STAIN AND LEAVE AS UNCOVERED WOOD, KEEP IN MIND THAT ALL WOOD PRODUCTS WILL HAVE GRAIN, COLOR, AND TEXTURE VARIATIONS. REQUIRES SANDING.

Please note that exterior-grade finishes or Rubio Monocoat oils are required for our products. The temperatures and moisture levels inside vehicles can fluctuate significantly, so it is important to use the appropriate products to finish these components. If you have any questions, please do not hesitate to contact us.

Find instructions with QR codes sent with shipment, documents attached at the bottom of this page, or check out each individual products page on our Website to access instructions faster!

FRIDGE SOLD SEPARATELY – Recommended Fridges: Isotherm Cruise 130 Elegance, Truck fridge TF 130

*** Some components/ hardware may not look exactly like the photo ***

Features

  • Free Shipping
  • Marine Rim Latches & Blum Hinges: The rim latches are made from solid stainless steel components.
  • Baltic Birch Plywood: Baltic Birch Plywood is a multi-ply laminate that is known for its strength and long-lasting durability.
  • Stainless Steel Sink & Faucet: Stainless steel adds to the durability and aesthetic of the kitchen.

Compatibility

  • Curvature is designed to be compatible with our Ford Transit panel kits.

Kit Includes

  • Precut Baltic birch plywood
  • Black Formica countertop
  • Stainless steel sink
  • Stainless steel faucet
  • 31 x Cabinet fasteners
  • 2 x Blum hinge sets
  • 1 x Rim latch
  • 1 x Doorstop bracket
  • 14 x #8 x 3/4 in. Truss head screws
  • 1 x Pump
  • 2 x 6 gallon tanks
  • 1 x Tank cap with 3/8 in CPC and pickup tube
  • 1 x Tank cap with 3/4 in CPC
  • 1 x Sink with strainer
  • 1 x Sink barb adapter
  • 1 x Barb adapter ring
  • 1 x 11 in x 3/4 in Corrugated tubing
  • 1 x 14.5 in x 3/8 in Braided vinyl tubing
  • 1 x 19 in x 3/8 in Braided vinyl tubing
  • 4 x 1/2 in Worm drives
  • 2 x 1 in Worm drives

Specifications

  • Length: 45 inches
  • Width: 20.88 inches
  • Height: (floor to countertop): 34.9 inches
  • Weight: 90 Pounds

Shipping

  • Processing time: 2-7 days
  • Shipping time: 1-5 days
  • Free Shipping
  • The package is flat packed and shipped with all hardware included. All packages are insured.

Packing List/Dimensions

Kitchen Galley Packing List and Instructions

Dimensions

Returns

Instructions

Vans are unique, and how people choose to install our products will vary widely. For that reason, we do not supply any hardware for installation or offer installation instructions. We only provide hardware and instructions for the assembly. See the video in the image gallery. For the kitchen, we suggest using rivet nuts and bolts or heavy-duty sheet metal screws. You will need to align your Kitchen, mark where the structural elements of the van are, and pre-drill holes through the mounting plates for final installation. Then, the kitchen can be screwed or bolted through the wood backer plate into the wall and the base plate into the floor.
