Timber Van Kits

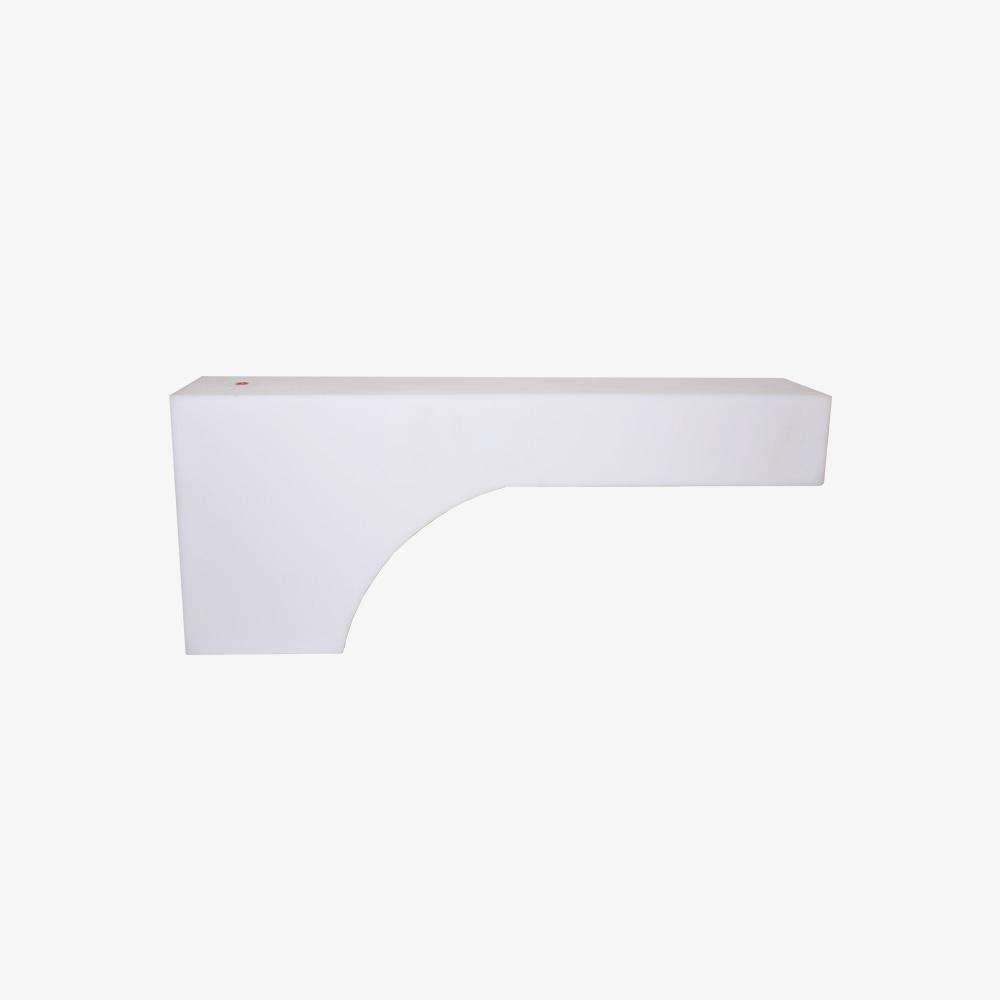

20 Gallon Slim Wheel Well Water Tank

20 Gallon Slim Wheel Well Water Tank

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

Our Slim Wheel Well Water Tank is designed to save even more interior space than our Standard tank while still providing a 20-gallon capacity. This tank also enhances safety by distributing weight to the rear tires for optimal traction. The design is naturally baffled to minimize water sloshing and can be easily installed in Sprinters and Transits.

***Tank may have excess plastic shards on the inside from the manufacturing process. We recommend to rinse out the tank before install to be sure.***

Features

  • 20 Gallon capacity
  • BPA-Free
  • NSF/ANSI 61 Certified
  • Reversible: For both driver and passenger sides.
  • Naturally baffled to decrease water sloshing
  • Centers weight over the axle

Fittings

  • 1/2 in FNPT Fittings on both ends of the tank and one on top.
  • Threaded inserts on both ends of the tank (5/16"-18)
  • Inlet and outlet on front and top for universal installation on either passenger or driver side.

Compatibility

  • Compatible with Sprinters and Transits
  • Not compatible with Ram ProMasters

Kit Includes

  • 1 – Slim wheel well tank
  • 4 – Mounting brackets

Specifications

  • Capacity: 20 gallons
  • Weight: 33 pounds
  • Length: 46 inches
  • Height: 19 inches
  • Width: 10.5 inches

Shipping

  • Weight: 35 pounds
  • Box Dimensions  59 x 19 x 11 inches
  • Processing time: 1-5 days
  • Shipping time: 1-5 days
  • Free Shipping
